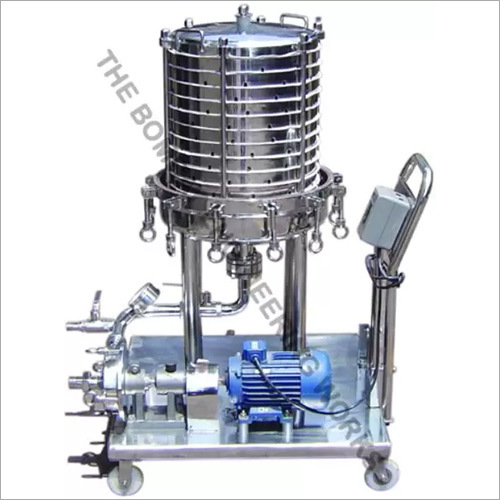

Zero Hold Up Filter Press

Get a Price/Quote

Zero Hold Up Filter Press Specification

Product Type
Zero Hold Up Filter Press

General Use
Solid-liquid separation in pharmaceutical, chemical, food & beverage industries

Material
Stainless Steel (SS 304/316)

Type
Horizontal Plate Closed Type Filter Press

Capacity
5 to 300 Liters (customizable per requirement)

Weight (kg)
Varies by model, typically 50-400 kg

Computerized
No

Automatic
Optional (Manual/Semi-Automatic/Automatic available)

PLC Control
Optional (advanced models only)

Shaft
Stainless Steel

Drive Type
Mechanical hand operated or motorized (model dependant)

Voltage
220-415V AC, 50/60 Hz

Motor
0.5 to 2 HP (depending on capacity/model)

Dimension (L*W*H)
Custom as per model (approx. 600x450x900 mm upwards)

Packaging Material
Export worthy wooden/metal crate

Feature
Minimum hold-up design, easy plate removal, leakage free operation

Color
Metallic/Silver (Polished Stainless Steel Finish)

Expansion Capability
Plates can be added or removed easily

Number of Plates
5 to 50 (Depends on capacity/model)

Compliance
GMP compliant design & fabrication

Filtration Area
0.2 m² to 3.2 m² (model specific)

Mobility
Mounted on castor wheels for easy movement

Filter Media
Filter cloth/paper/Membrane as per application

Max Working Pressure
Up to 5 Kg/cm²

Inlet/Outlet Connection
Tri-clamp or flange (DIN/BS/ANSI standards possible)

Plate Diameter
8", 14", 18" (Various as per design)

Operating Temperature
Ambient to 100°C (Standard, higher on request)

Sealing Gasket
Silicon/Viton/EPDM as suited to process

About Zero Hold Up Filter Press

Product details

Cake Holding Capacity	2.20 Ltrs
Carbon loading	5 kg/m2 filteration area.
Diameter of Plate	8 inch
Filtering Area	0.110 M2
Material	Stainless Steel SS 304 / SS 316 / SS 316 L
Model	FP-8
Motor	1 HP
No of Plates Filtering Area	3 M2
Size and Type of Pump	Centrifugal 1/2"
Working Pressure	Minimum 0.1 Kg / Cm2 & maximum 10 kg/cm2
Finishing	Coated
Flow Rate	280 Ltrs/hr
Usage/Application	Industrial

Precision Filtration for Multiple Industries

This filter press caters to diverse applications such as pharmaceuticals, chemicals, and food & beverage processing. The device is GMP compliant and supports solid-liquid separation tasks, delivering high performance and reliability across critical production environments.

Customizable Design and Capacity

Choose from various models with plate diameters of 8", 14", or 18" and filtration areas ranging from 0.2 m2 up to 3.2 m2. The configurable design allows for easy addition or removal of plates, adapting swiftly to changing process needs and throughput requirements.

Robust and Safe Operation

Manufactured using high-grade stainless steel, the filter press withstands pressures up to 5 Kg/cm2 and temperatures up to 100C, ensuring safe operation even in demanding settings. Its leakage-free design and mechanical or motorized drive options support both manual and automated workflows.

FAQ's of Zero Hold Up Filter Press:

Q: How does a Zero Hold Up Filter Press ensure minimal product loss during filtration?

A: The Zero Hold Up design allows filtered material to pass through all plates without retention, minimizing wastage and maximizing output by preventing hold-up of unfiltered product in the system.

Q: What is the recommended process for expanding the filtration capacity of this filter press?

A: To increase capacity, users can easily add extra plates to the unit. The modular design allows for swift installation or removal, making it simple to adjust the filter press according to batch size or production demands.

Q: Where is this filter press commonly used, and why is it preferred?

A: It is frequently utilized in pharmaceutical, chemical, and food & beverage industries due to its GMP compliant fabrication, robust performance, and adaptability for different filtration media and batch sizes.

Q: What types of filter media can be used with this equipment?

A: Depending on the application and required filtration grade, the press supports filter cloth, filter paper, and membranes, providing versatility for various solid-liquid separation requirements.

Q: When should users opt for manual versus automatic operation modes?

A: Manual operation is suitable for smaller batches and standard processes, while automatic or PLC-controlled modes are recommended for higher capacity production, enhanced efficiency, and ease of supervision.

Q: What are the main benefits of using a Zero Hold Up Filter Press over traditional filter presses?

A: Key advantages include minimal unfiltered hold-up volume, straightforward plate removal, compliance with international standards (DIN/BS/ANSI for connections), mobility, and leak-proof operation, resulting in reduced downtime and improved productivity.

Q: How is the filter press safely transported and installed?

A: Each unit is packaged in export-worthy wooden or metal crates, and its castor wheels facilitate easy movement within facilities. Dimensions and weight vary; installation guidance is provided with every shipment.
