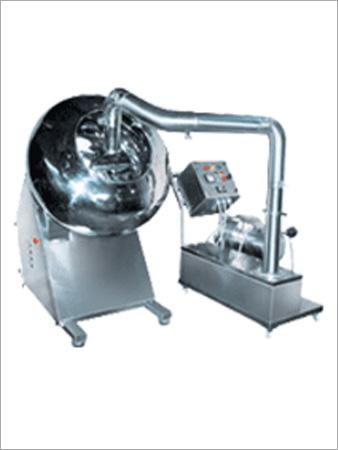

Coating Pan

Name: Coating Pan
Brand: THE BOMBAY ENGINEERING WORKS
Price: 160000 INR
Availability: InStock

Price 160000 INR/ Unit

Get a Price/Quote

MOQ : 01 Unit

Coating Pan Specification

Phase
Single/Three Phase

Frequency
50/60 Hz

Features
Polished surface, robust construction, easy to clean, variable speed drive

Usage & Applications
Tablet coating in pharmaceutical, food, and chemical industries

Noise Level
75 dB

Temperature
Upto 80C (adjustable)

Type
Coating Pan

Material
Stainless Steel

Computerized
No

Power
1.5 5 HP (depending on model)

Dimension (L*W*H)
1100 x 900 x 1550 mm (varies by model)

Color
Silver / Metallic

Coating Pan Trade Information

Minimum Order Quantity
01 Unit

Payment Terms
Cheque

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia

Main Domestic Market
All India

About Coating Pan

We are strongly supported by a well established and fully equipped R&D unit, enabling us to manufacture and supply a wide range of Tablet Section - Coating Pan. These machines are highly demanded in paint, pharmaceutical and chemical industries. At our unit, we utilize optimum grade stainless steel, procured from the most reliable vendors to manufacture the pan. Our quality analysts check the Tablet Section - Coating Pan on construction and performance parameters to provide a defect free range to the clients.

Features:

Gives variable speed output
Consumes less power
Easy to install

Further Details:

Pan: SS 316 semi ellipsoidal size pan with a circular mouth for charging and discharging of tablets pan mounted at an inclination of 45 degrees to the horizontal.
Drive Assembly: Consists of a suitable HP 3 Phase, 440 V, 1440 RPM TEFC motor with suitable worm reduction gear box and cone pulley arrangement to give three speed output.
Hot Air Blower: The unit is provided with a hot air blower consisting of suitable HP 3 Phase 440 V, 2880 RPM TEFC electric motor and centrifugal blower with damper delivering required CFM. The air is heated by means of suitable electric heater to give air at 30 to 90 degrees Heater with thermostat control and flexible hose pipe.
Control Panel: Unit provided with suitable control panel with starters and push button to actuate the drive and for blower the circuits consists of MCCBs, relays and contractors in series Ample overload protection is provided by the MCCB and the relay Wires coming out of the connections are numbered for easy recognition.
Mounting: The motor and gear box is mounted inside sturdy MS frame and the pan mounted on the Gearing housing fitted in the stand. Blower mounted by the side of the stand or placed in remote location if required.
Finish: All joints argon Arc welded and all SS Parts Polished to suitable finished required of pharmaceutical equipment MS parts painted to smooth finish.

Options Available:

Unit with FLP motors and FLP push button station but non FLP panel to be mounted outside FLP area,
Unit in SS 316 quality contact parts,
Unit with SS304 cladding, for GMP model and
Steam heating for blower.

Product details

Drive Motor	0.50 HP
Heater	1.5 Kw
Hot Air Blower Motor	0.25 HP
Loading Capacity	25 Ltrs
Maximum Blower Capacity	100 CFM
Model Number	CP-24
Pan Speed	24/72 RPM

Precision Engineering for Consistent Results

Crafted from durable stainless steel, our coating pan ensures uniform coatings with every batch. The variable speed drive lets operators adjust the motion to suit different types of tablets and coatings. The smooth, polished surface and robust structure guarantee not only longevity but also easy cleaning and reduced maintenance downtime.

Optimized for Industrial Versatility

Engineered for the pharmaceutical, food, and chemical industries, this coating pan supports a wide range of applications. The adjustable temperature capability (up to 80C) is ideal for heat-sensitive coatings, and with models supporting both single and three-phase power, integration into existing production lines is seamless.

FAQs of Coating Pan:

Q: How does the coating pan enhance the tablet coating process?

A: The pan provides uniform motion and precise temperature control (up to 80C), promoting an even distribution of coating materials. Its variable speed allows adaptation to different tablet sizes and coatings, resulting in consistent, high-quality finishes.

Q: What materials are used in the construction of the coating pan?

A: The pan is constructed from high-grade stainless steel, known for its durability, corrosion resistance, and ease of cleaning, which is crucial for applications in hygienic environments such as pharmaceutical, food, and chemical production.

Q: When should I choose a model with higher power output?

A: Selecting a model with higher power (up to 5 HP) is ideal for larger batch sizes or denser materials that require more mixing force, whereas lower power models (1.5 HP) are suitable for small-scale or delicate coating operations.

Q: Where can this coating pan be installed and operated?

A: It can be installed in factories, laboratories, or manufacturing facilities within pharmaceutical, food, or chemical industries. Its compatibility with both single and three-phase power and dimensions tailored to industry norms make integration straightforward.

Q: What is the procedure for cleaning the coating pan?

A: Thanks to the polished stainless steel surface and accessible design, the pan can be washed down with approved cleaning agents and rinsed thoroughly, reducing cleaning time and minimizing the risk of cross-contamination.

Q: How does variable speed drive benefit the coating process?

A: The variable speed drive allows operators to finely tune the coating pans rotation speed, ensuring optimal coating coverage for different tablet types and minimizing product breakage or uneven coatings.
